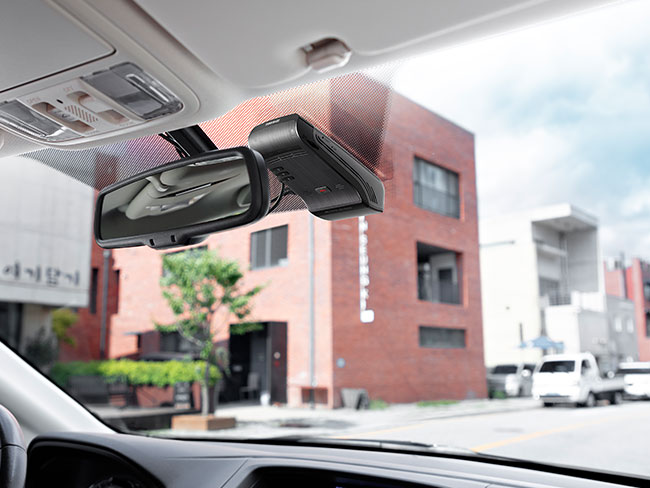

U1000 Plus
4K Clarity with HDR
Enjoy superior protection and clarity on the road with the U1000 Plus. Featuring stunning 4K resolution at the front and 1080p at the rear, both with HDR to enhance detail in every frame. Ideal for those seeking top-tier performance, this dash cam integrates seamlessly into your vehicle with easy Bluetooth connectivity and is compatible with the Multiplexer box for expanded recording options.https://youtu.be/9TB4AknOwe8
4K UHD Recording — Sony STARVIS IMX515
Experience exceptional clarity with the U1000 Plus, featuring advanced 4K recording powered by Sony’s STARVIS IMX515 sensor and a high-performance Ambarella H22A67 CPU. This technology ensures superior video quality, and you can adjust the resolution from 4K at 30fps to 2K at 60fps for smoother videos and easier license plate reading.
High Dynamic Range (HDR)
Multi-exposure HDR technology enhances image detail in high-contrast scenes, balancing exposure for clear footage, whether in overly bright or dark conditions.
Smart Auto-Exposure
Automatically adjusts exposure for clear footage in bright sunlight or headlight glare.
Dewarping Technology
Reduces distortion from wide-angle lenses, providing a more natural and accurate view of the road.
Super Night Vision 3.0
Advanced ISP technology ensures bright, clear footage in low-light conditions like dark alleys or parking lots. With enhanced sensitivity, it captures crucial details in true-to-life colors and minimal noise, delivering exceptional performance for nighttime recording.
Super High-Efficiency Video Coding (HEVC)
Compresses video up to 50% more efficiently than other models, preserving image quality while enhancing memory storage efficiency.
- High resolution
- Compress up to 50%
- Improved memory-efficiency
Privacy Recording
Continuously overwrites the SD card to protect your privacy, looping over existing footage and retaining only a short backlog of recent recordings.
Loop Recording
Once the U1000 Plus memory card reaches its storage limit, the system automatically overwrites the oldest files with new recordings, allowing the camera to continue recording without interruption.
Get Up to 5 Channel Recording
Multiplexer Compatible
Enhance your vehicle’s security with the Multiplexer Box accessory, turning the U1000 Plus into a multi-channel surveillance system for comprehensive coverage and peace of mind.
Exterior Infrared Camera
Weatherproof Full HD camera with infrared lights provides clear road coverage and easily mounts on larger vehicles like trucks, RVs, and trailers.
Exterior Side View Camera
Low-profile, IP68-rated camera covers your vehicle’s blind spots and records events in Full HD.
Interior Cabin Camera
Designed for interior recording, this camera features high-quality infrared sensors, perfect for low-light conditions.
Parking Surveillance
Automatically activates when you turn off the ignition, capturing footage to provide video evidence of any incidents, such as hit-and-runs, while your vehicle is parked.
*Requires installation of a hardwiring cable or OBD II power cable *Requires installation of a hardwiring cable or OBD II power cable
Smart Parking Mode
Automatically switches to low-power mode in high temperatures, recording impacts only until normal Parking mode can resume.
Time Lapse
Records at 2 frames per second (fps), enabling the dash cam to capture long durations of continuous footage while keeping power consumption low.
Energy Saving
Conserves power by recording only when impacts are detected, allowing the dash cam to stay in Parking mode for extended periods.
Motion & Impact Detection
Automatically triggers a 20-second recording when motion or impact is detected, capturing 10 seconds before and after the event.
Radar Parking with the Radar Module
Unlock enhanced parking protection by adding the optional radar module. This enables Radar Parking, which uses low-power front and rear radars to monitor motion, delivering extended surveillance with minimal power consumption. The system buffers footage to capture 10 seconds before and after detecting motion or impact, saving a 20-second video clip of the event.
Easy Wi-Fi
Device Pairing
Effortlessly pair your dash cam with any compatible Android or iOS device using the THINKWARE DASH CAM LINK app. Once connected, you can easily adjust settings, replay footage, and download your latest driving videos on the go.
THINKWARE CONNECTED
Receive impact notifications or monitor remotely what’s happening around your vehicle via your smartphone with the THINKWARE CONNECTED app.
1. Connecting the dash cam to a mobile hotspot device or a Wi-Fi network with Internet access will consume data. Carrier/Service Provider charges may apply.
2. The smartphone used to set up the Internet connection on the dash cam cannot also be used as a mobile hotspot for the dash cam. A different hotspot device/smartphone is required.
3. To connect the dash cam to the internet, use the Thinkware Dash Cam Link App. Once the dash cam is connected to the internet, you can go to the Thinkware CONNECTED app to get access to CONNECTED features.
Strong Impact Notifications
A serious impact stronger than 3G will trigger a push notification to the Thinkware CONNECTED app and send an emergency message to your registered contact.
Impact Notification when Parked
If an impact is detected while the car is parked, the app will receive a notification automatically.
Send Emergency Message
In emergency situations, when you are unable to reach the phone, pressing the REC button on the dash cam for more than 3 secs will send an emergency message to your registered contact.
Remote Live View
Check what is happening around your vehicle in real time, no matter where you are.
Vehicle Status & Driving History
Find important information such as the location of your vehicle, whether it’s parked or driving, your route history and driving behavior, current vehicle battery voltage, and more—all from the app.
Captured Image of Most Recent Parking
You can check the images of your front and rear view cameras of where you last parked, so you won’t have to remember where you parked your vehicle.
Advanced Driver Assistance Systems (ADAS)
A suite of features designed to enhance driving safety by reducing the risk of collisions and mitigating injury severity. These systems provide real-time audio alerts to help keep you aware of potential hazards on the road.
Front Vehicle Departure Warning (FVDW)
Notifies the driver when the vehicle ahead starts moving after being at a complete stop.
Forward Collision Warning System (FCWS)
Monitors the speed and distance of the vehicle ahead, alerting the driver when the following distance becomes unsafe at speeds over 40 km/h.
Lane Departure Warning System (LDWS)
Notifies the driver when the vehicle unintentionally drifts out of its lane at speeds over 50 km/h.
Safety Camera Alerts
Using its built-in GPS, the dash cam tracks your vehicle’s speed and time data, providing alerts for upcoming red light and speed cameras.
Features
- Front – 4K UHD (3840 x 2160) @30 fps or 2K QHD (2560 x 1440) @60 fps
Rear – FHD (1920 x 1080) @30 fps
8.46 MP Sony STARVIS sensor
HDR – Front and Rear
Super Night Vision 3.0
Dewarping Technology
Advanced Video Clear Technology
HEVC format H.265
Built-in Bluetooth & Wi-Fi
Built-in GPS
ADAS (LDWS/FCWS/uFCWS/FVDW)
Safety Camera Alert (Speed & Red Light Camera)
Parking Surveillance Mode (Smart, Motion & Impact Detection, Time Lapse and Energy Saving Mode)*
Radar Module Compatible
Up to 5CH Recording***
Easy Device Pairing
THINKWARE CONNECTED (Locate Vehicle, Impact Notification, Captured Image of Most Recent Parking and Remote Live View)**
THINKWARE Dash Cam Link app
Supports MicroSD Cards up to 512 GB
Supercapacitor
Integrated Thermal Protection
Anti-File Corruption
Specifications
- Resolution:
Front – 4K UHD (3840 x 2160p) @30 fps or QHD (2560 x 1440p) @60 fps
Rear – 1080p FHD (1920 x 1080p) @30 fps
Camera:
Front – 8.46 MP Sony STARVIS IMX515
Rear – 2 MP F352 CMOS
Frame Rate:
Front – 30, 60 fps
Rear – 30 fps
Viewing Angle:
Front – 135° (Diagonal)
Rear – 160° (Diagonal)
Dimensions (WxDxH): 64 x 111.5 x 32 mm (2.52 x 4.39 x 1.26 in)
Weight: 127.8 g (0.28 lbs)
Storage Temperature: -20°~ 70° C (-4°~ 158° F)
Operating Temperature: -10°~ 60° C (14°~ 140° F)
Capacity: MicroSD Card 32/64/128/256/512 GB UHS-I
Interface: DC-IN / V-IN / EXT. / RADAR / MicroSD Card Slot
Input Power: DC 12/24V
GPS: Built-in
Languages: English (US,UK), French (Canada, France), Chinese (Simplified, Traditional), Spanish, German, Italian, Portuguese, Russian, Thai, Japanese, Czech, Korean, Hebrew, Arabic
TW-U1000PLDHF
